1. Shaftless Electrical Mill Roll Stand (4 sets)
  Symmetric structure for non-stop paper change; electric control (paper lifting/clamping/centering); pneumatic tension + braking; expansion-type paper clamp (adapts to 350-1400mm paper diameter).

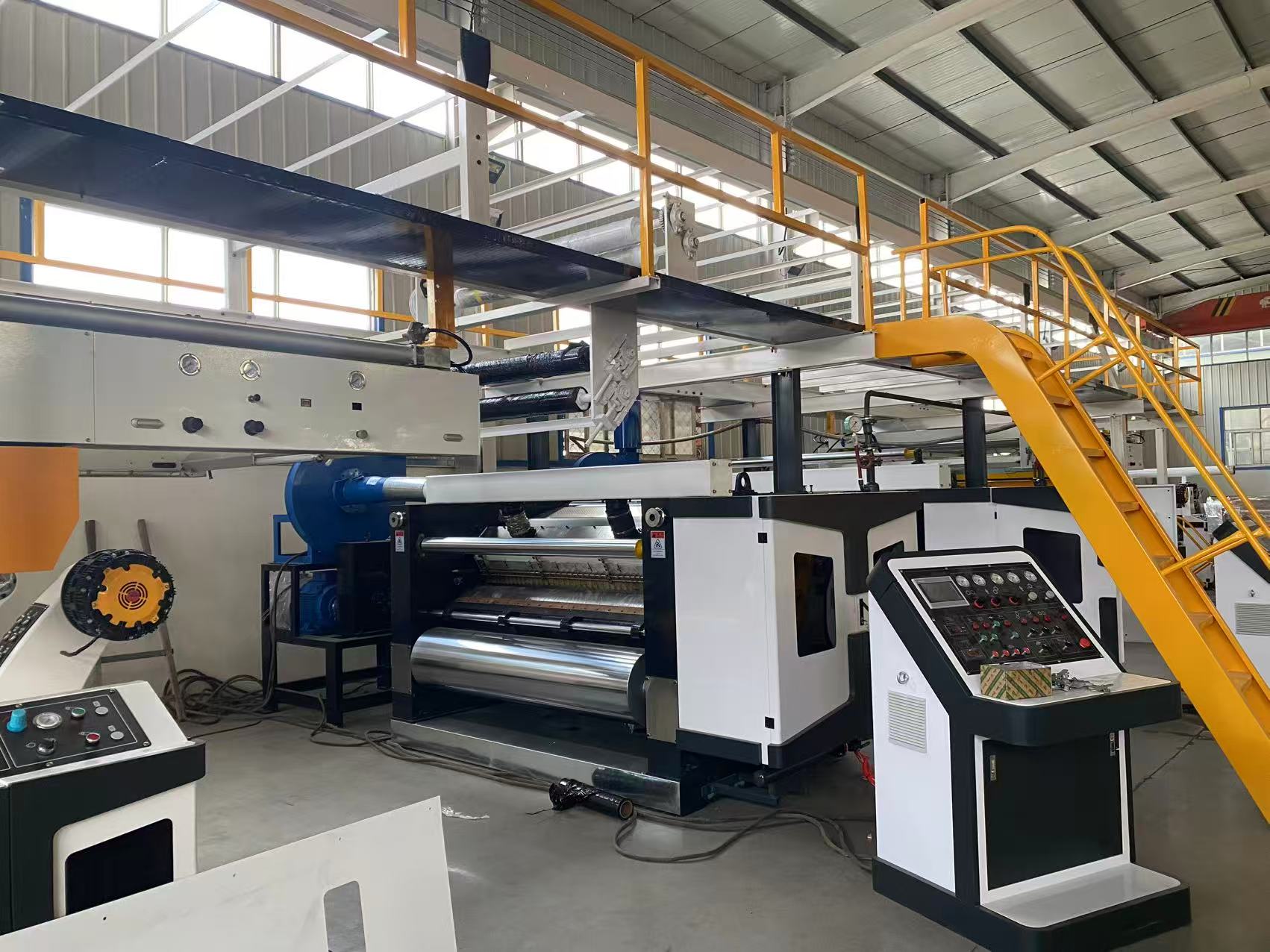

2. Dual Single Facer Machine (2 sets)
  Negative pressure adsorption design (uniform corrugation forming); corrugated roller (48CrMo, HRC58, medium-frequency quenching + hard chrome plating); airbag pressure control; electric glue amount adjustment; easy-to-clean glue system.

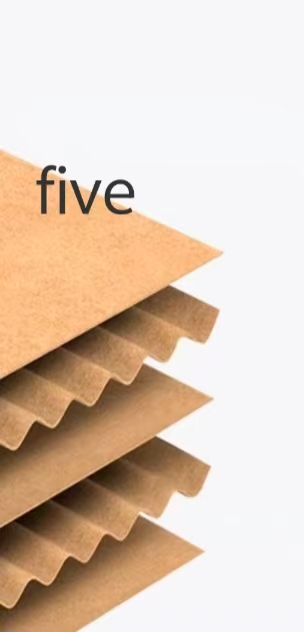

3. 5-Layer Gluer Machine
  Cast iron frame (high stability); independent frequency conversion motor per layer; PLC-controlled coating gap; stainless steel glue tank (automatic circulation); dynamic-balanced glue rollers (glue saving).
4. Heavy Double Facer Machine
   S-shaped steam flow (high heat efficiency); pneumatic pressure plate + roller pressing; automatic belt deviation correction; 55KW variable-frequency main motor (energy-saving); 12 heating plates (600mm/each) + 5m cooling section.
5. Thin Blade Slitting Machine (5-knife 10-scorer)
  Synchronous motor-driven electric knife adjustment; switchable line types (convex-concave/convex-flat); tungsten alloy blades (≥10 million meters service life); imported synchronous belt transmission.
6. NC Cutter Machine
  High-rigidity ground gears (burr-free cutting); AC servo drive (German driver); auto fault detection + 1200-order storage; oil pump circulation lubrication.
7. Right Angle Stacking Machine
   Deceleration stacking + electric transverse conveying; wide conveyor belt (adapts to 2500mm max length); intelligent switch control (stacking count/height).
8. Transmission & Lubrication
   40Cr gears (HRC58, grade 6 precision); keyless couplings (gap elimination); continuous circulating oil supply (double oil pump); closed spray lubrication.
  Component Features
1. Shaftless Electrical Mill Roll Stand (4 sets).Symmetric structure enables non-stop paper replacement; electric control for paper lifting, clamping and centering; pneumatic tension and braking; expansion-type paper clamping head (fits 350-1400mm paper diameter).
2. Dual Single Facer Machine (2 sets).Negative pressure adsorption design ensures uniform corrugation forming; corrugated roller (48CrMo, HRC58, medium-frequency quenching + hard chrome plating); airbag pressure control; electric glue quantity adjustment; easy-to-clean glue system.
3. 5-Layer Gluer Machine.Cast iron frame for high stability; independent variable-frequency motor per layer; PLC-controlled coating gap; stainless steel glue tank with automatic circulation; dynamic-balanced glue rollers (reduces glue waste).
4. Heavy Double Facer Machine. S-shaped steam flow in heating plates (high thermal efficiency); pneumatic pressure plate + roller-type pressing; automatic belt deviation correction; 55KW variable-frequency main motor (energy-saving); 12 heating plates (600mm each) + 5m cooling section.
5. Thin Blade Slitting Machine (5-knife 10-scorer).Synchronous motor-driven electric knife adjustment; switchable line types (convex-concave/convex-flat); tungsten alloy blades (service life ≥10 million meters); imported synchronous belt transmission.
6. NC Cutter Machine.High-rigidity ground gears for burr-free cutting; AC servo drive (German driver); automatic fault detection + 1200-order storage; oil pump circulation lubrication.
7. Right Angle Stacking Machine.Deceleration stacking + electric transverse conveying; wide conveyor belt (adapts to max 2500mm length); intelligent switch control (by stacking count or height).
8. Transmission & Lubrication.40Cr gears (HRC58, grade 6 precision); keyless couplings (eliminates gaps); continuous circulating oil supply (double oil pump); closed spray lubrication for transmission components.
